DSCF0027_002

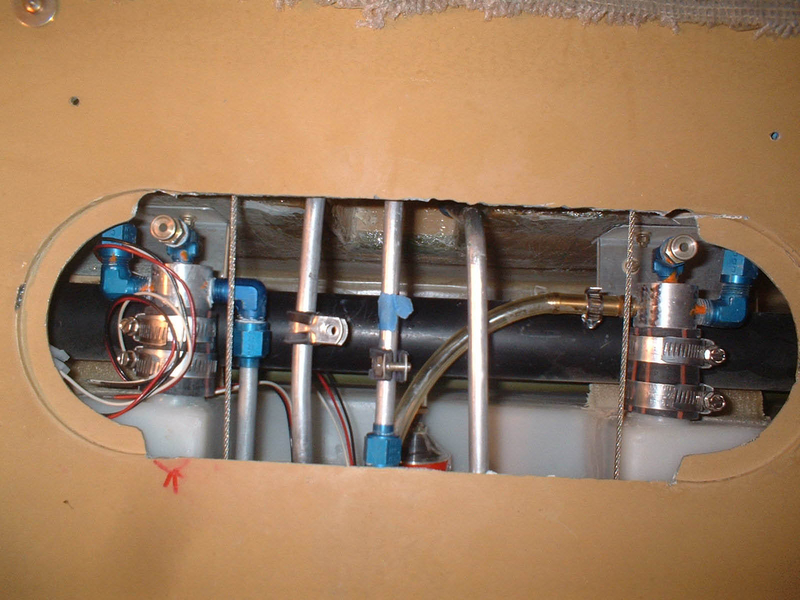

Ok, this time I was able to get everything to marry up just fine. Got the return line connected to the sensor, then pushed further back in the plane, then hooked up the other end of the return line to the tank, then hooked up the main feel line to the other sensor.

Date: 07/27/2009

Size:
Full size: 1600x1200
