DSCF0054

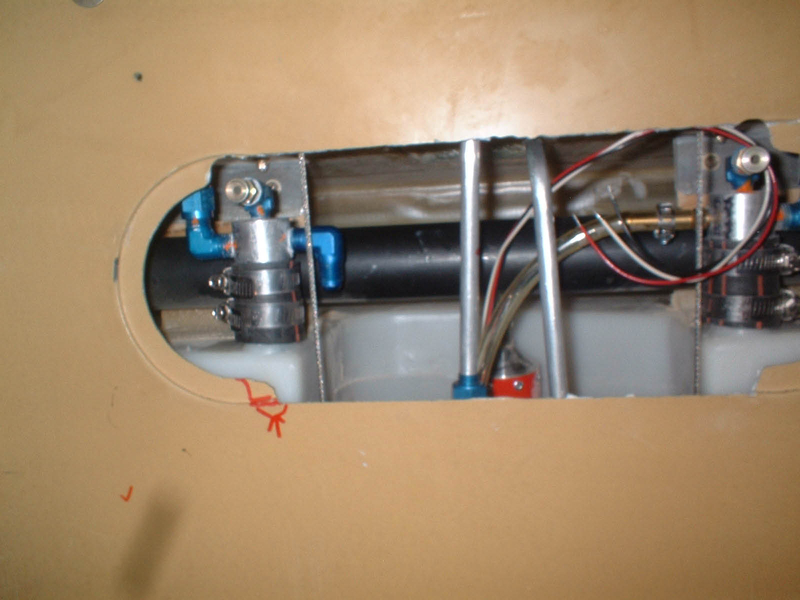

The fuel line on the right is going from the fuel selector to the pumps. The one on the left, just installed goes from the pumps to the bulkhead, then to the engine.

Date: 07/15/2009

Size:
Full size: 1600x1200
