Fuel_System_33

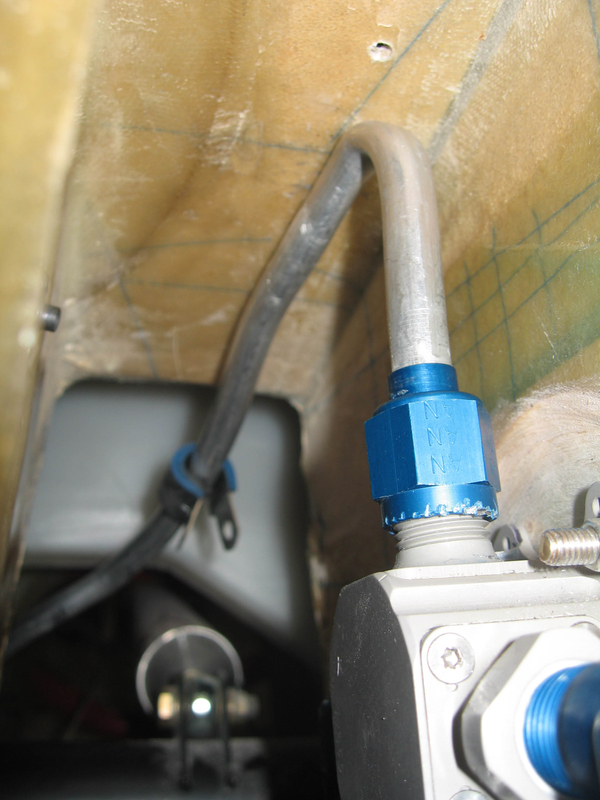

Trial fitted fuel outflow line but didn't route it through the tunnel correctly. Minor detail in that it would have been in contact with the wing spars!

Date: 09/16/2007

Size:
Full size: 2304x3072
