IMG_2356

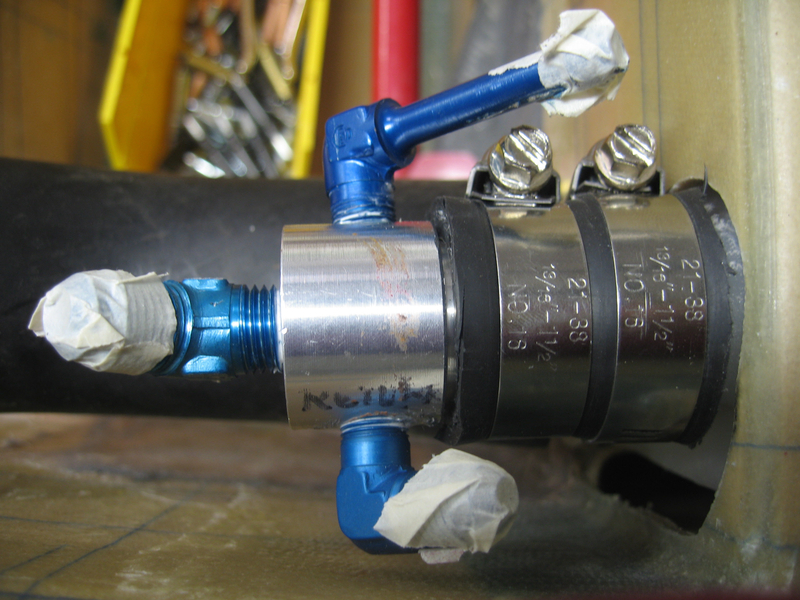

Final installation. The clear sight tube will go on the top fitting, venting for the tank via the left fitting, and the fuel vapor return from the tank will return into the bottom fitting. Taped up to keep the critters out until I get to that stage.

Date: 07/22/2007
