Flap fairing 3

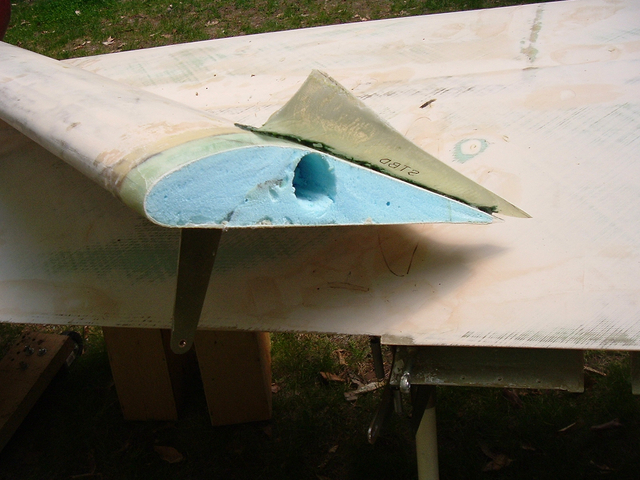

Flap fillet - shows early stage in flap construction to accomodate wing fairing when retracted. It was made from foam shape whichg was mod'd at both flap-up and -down positions and then laid up and foam melted with acetone.

Date: 05/30/2005
