IMG_5085

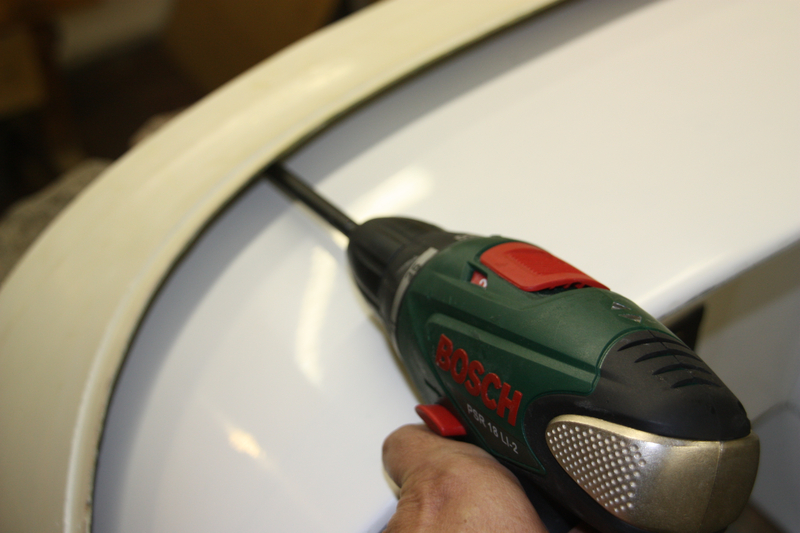

Drilling holes for the anchor nuts. The flange is very narrow, so care is needed. Trimming the module to get this far is tricky, since you have the Catch 22 that you can't see where to trim until it fits, which it doesn't until you have completely trimmed it..
The trick of course is to trim it before bonding the top on. I didn't. Duuuh.
