imm008_9

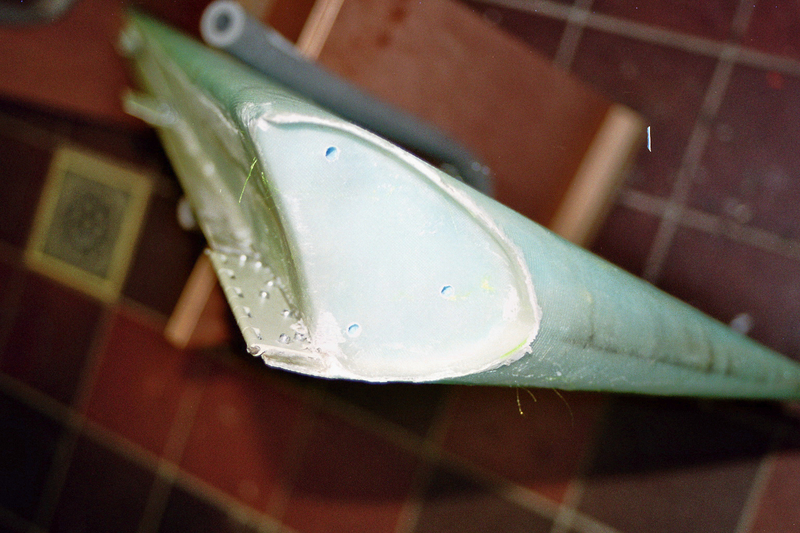

Foam cleared, first 3 plies on and ready for nutplate installation.
Note that where the flange has been removed is totally diffferent from the manual, but this is the only way that makes sense.

Date: 09/03/2009
