imm017_18A

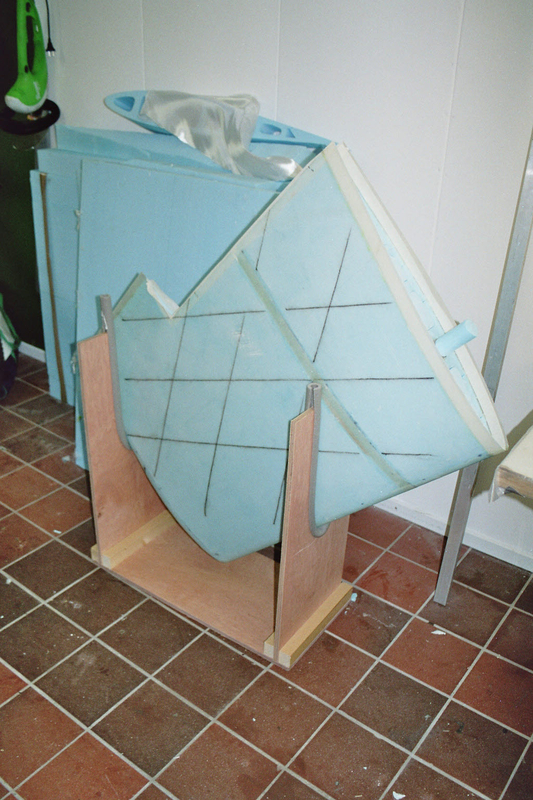

Jig for holding tailplanes. The inner rib and rear close outs all need to go in in one go, and orienting the tailplane this way uses gravity to keep it all in place when you are working on it.

Date: 09/02/2009
