IMG_1194

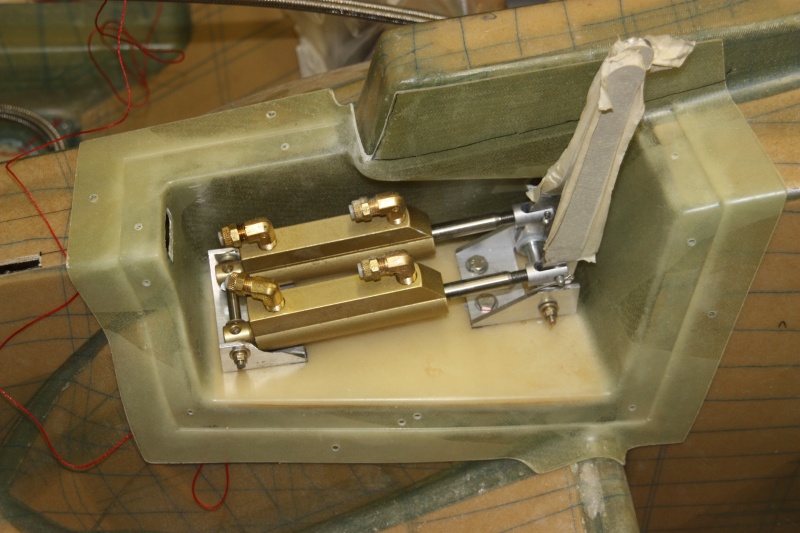

All the metally bits installed. Looks like a simple assembly job, but there is only one order in which it will all fit together and that is the one you try on the 12th attempt. Even then I had to drill a hole in the side to get the front bracket bolt in.

Date: 10/25/2009
