09032008018_G

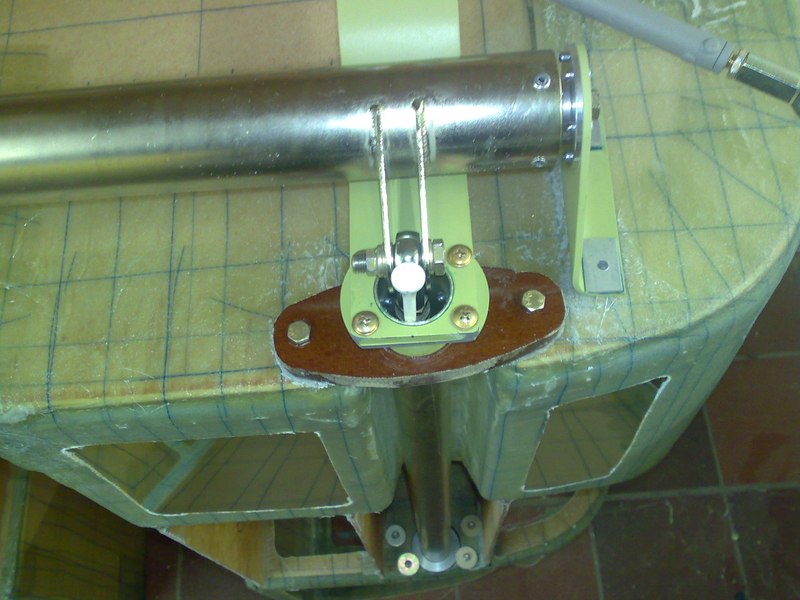

Looks like a straightforward assembly job, but there many different combinations of movements and one will always cause interference. Solve that one and you get another. Here a golf tee is used to get the right clearance.

Date: 10/27/2009
