IMG_0713

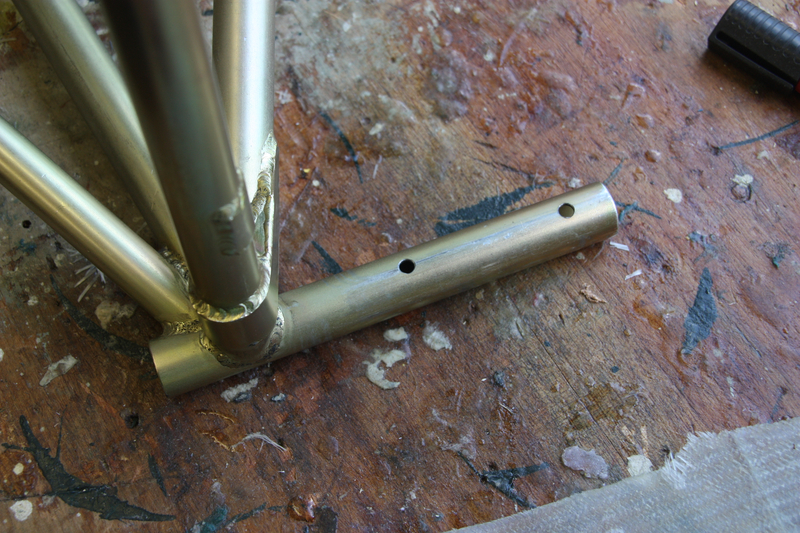

Drilled the holes in the mounting frame. Of course these holes are positioned in such a way that the rest of the frame interferes with the bench drill. So off to my neighbour again to have it done at his factory

Date: 05/30/2009
