IMG_1193ann

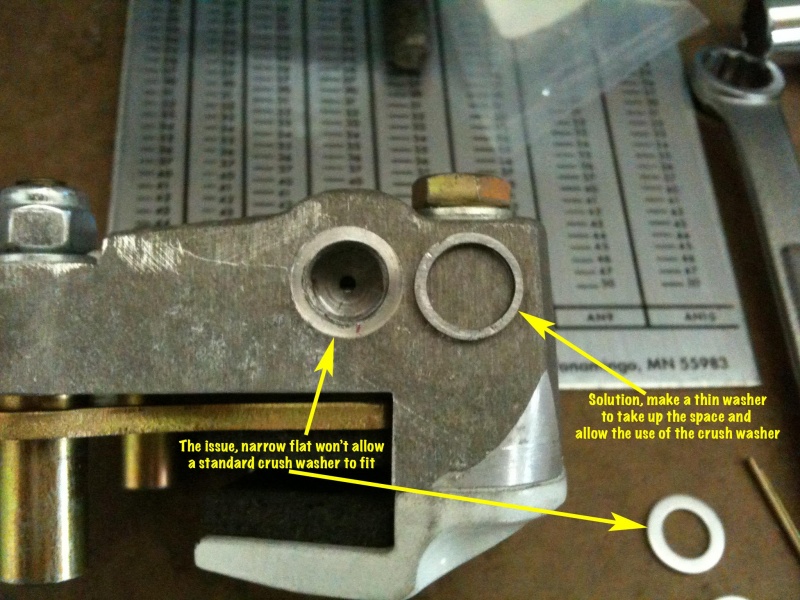

2010 06 03 - The problem is the narrow flat cut in the brake body. A standard crush washers don't fit into the space and won't seal over it with all the funky angles. The solution was to make a narrow washer that does fit into the space and creates a raised flat for the crush washer to sit upon.

Date: 05/31/2010
