IMG_7429post

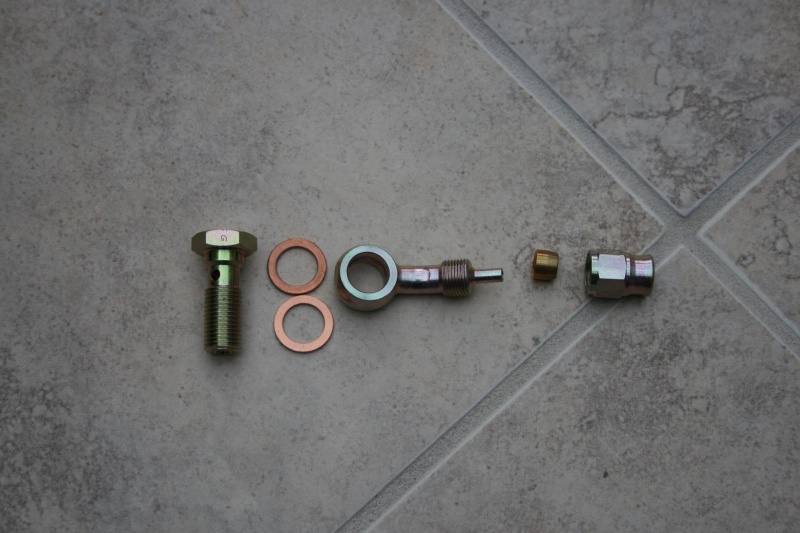

Here's a closeup of the hose end, bolt and washers. The hose end connector is identical to that which was on the master cylinder end so this should easily replace the 90 degree AN hose end provided. We'll know better later this week when I can get to the airport.

Date: 03/15/2010
