IMG_2463

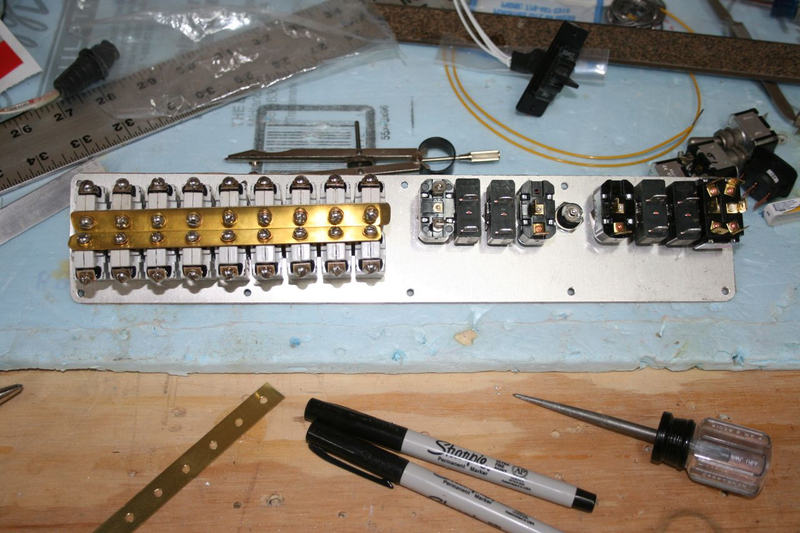

Here's why the bottom breakers are upside down. It puts the buss bars connecting the inputs together. The first breaker in the bottom row is the main output from the alternator so it is right side up so the output goes to the buss bars.

Date: 10/28/2011

Size:
Full size: 1280x853
