FIrewallx2Ann

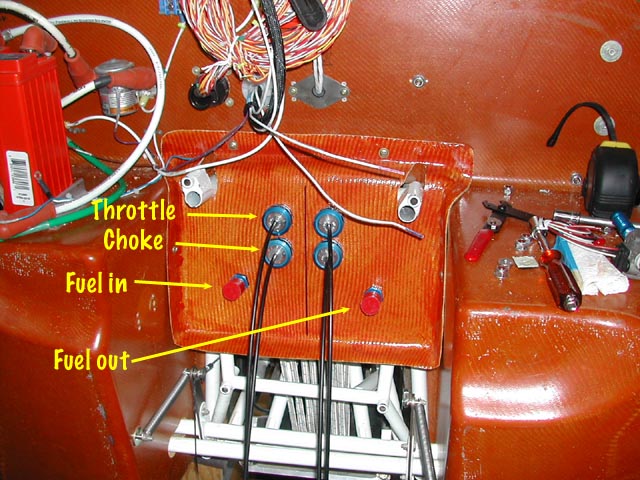

Front side of fIrewall with throttle, "choke" cables and fuel line penetrations.

NOTE!! I couldn't have located those fuel line firewall penetration in a worse place if I had tried!! They are exactly, I mean PERFECTLY, positioned to be behind the uprights for the motor mounts. DO NOT PUT THEM THERE!! They will have to be relocated.

Date: 04/23/2006

Full size: 640x480
