DoorSupportMod06

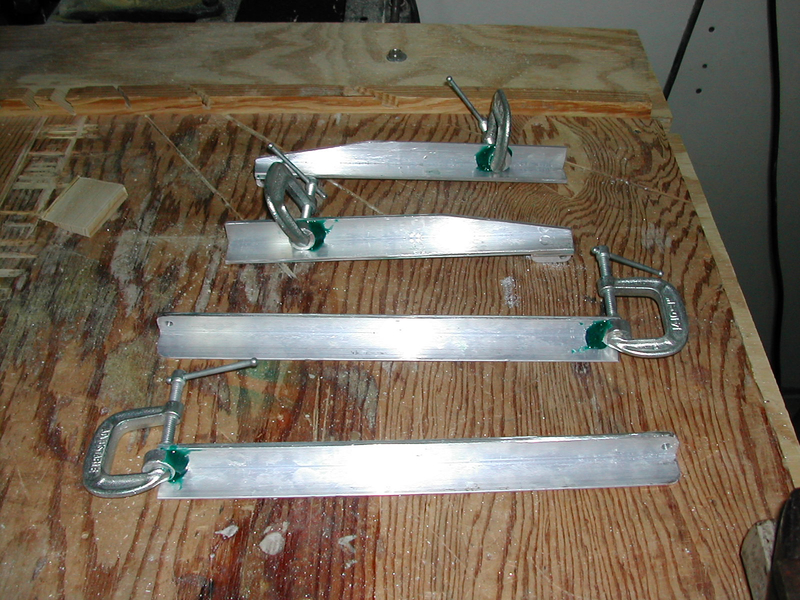

Completed the shaping of the lower door struts. Measured and marked the locations for the bushings on all of the struts. Oriented the bushings so that there was 7.5mm from the bottom of the strut to the center of the bushing. Mixed a small batch of Araldite 420 A/B and added milled fiber for strength and body. Bonded the bushing in place and applied a G-clamp to hold them. Used the remaining Araldite mix to make fillet around the bushing

Date: 05/04/2004
