InstrumentPanel36Ann

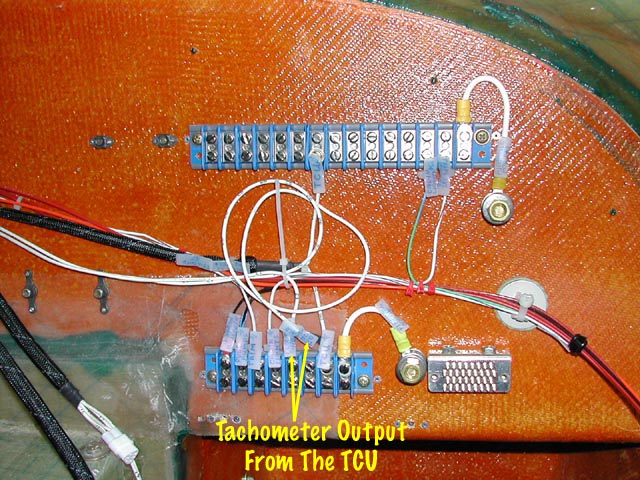

Put connectors on the ends of the Tachometer output wires from the TCU. Ring terminal on #13 and attached it to the ground buss. Male slip-connector on #26 to connect to EIS.

Date: 05/31/2004

Full size: 640x480
