InstrumentPanel41Ann

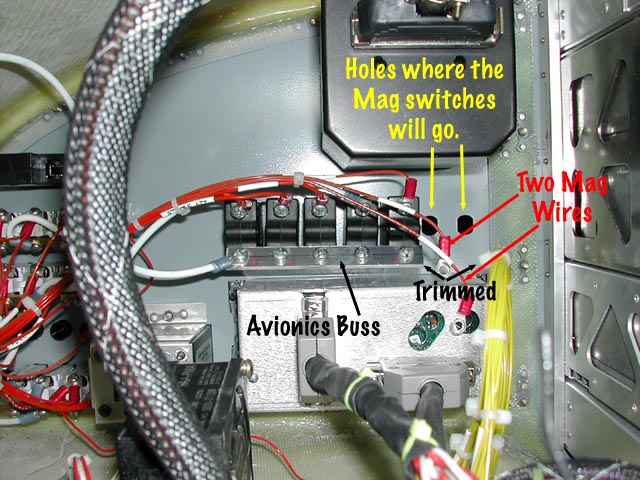

I trimmed the avionics buss so that it did not extend to the last two switch locations to the right. This was where the Mag switches where improperly installed. I will have to order two new SPST switches for these locations. Then run a ground buss across the bottoms of the switches and connect the two Mag wires to the tops of the switches.

Date: 06/04/2004
