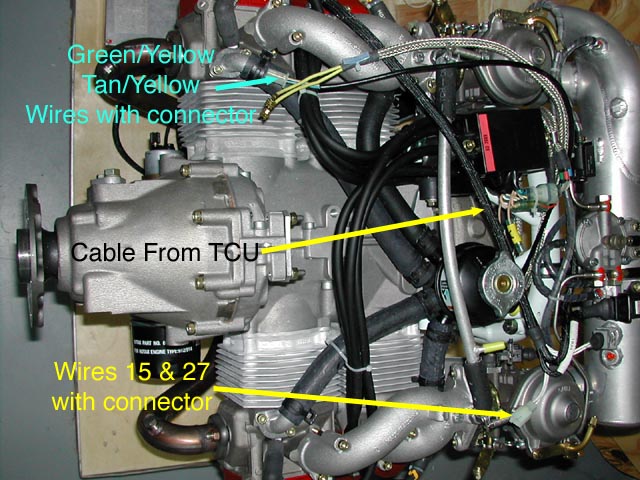

WiresQuestions1Ann

Printed the entire ROTAX 914 UL Installation Manual and spent the day going through it, cover to cover, to see what is involved and find out what all the wires connect to. When I had completed my tour of that, I went through the Europa 914 Installation Manual to see if I could locate any further information on the wiring. I used the remaining Label Ties to label most of the wires shown in the manuals. More details in Description...

Date: 05/21/2004
