GMA340PinoutJ1Ann

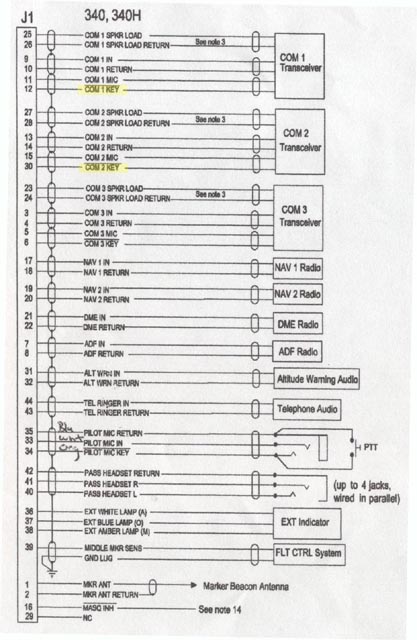

I was able to locate the key lines on the diagram for the J1 connector. They are indicated on the diagram with the yellow "highlight" markings.

Date: 09/14/2004

Full size: 417x640
