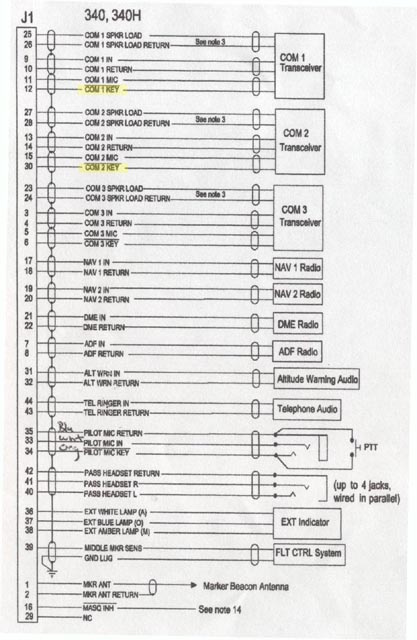

I was able to locate the key lines on the diagram for the J1 connector. They are indicated on the diagram with the yellow "highlight" markings.
