NavAntInstall05Ann

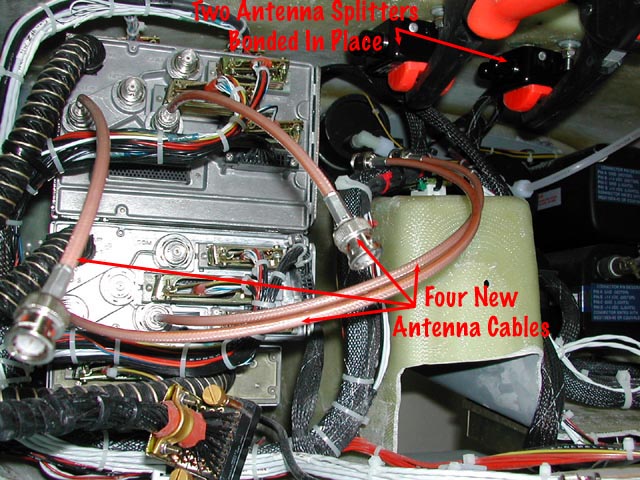

Four antenna cables made up to connect from the new splitters to the NAV & G/S connectors on the back of the radios. The two splitters are connected to studs which are being bonded to the top of the inside of the instrument panel. Tomorrow, after the bonds cure, I'll connect the cables to the splitters. Soon, I'll be able to fit the panel in place and I can trim the antenna cables to length and add connectors to them
