PanelWiringIssues00Ann

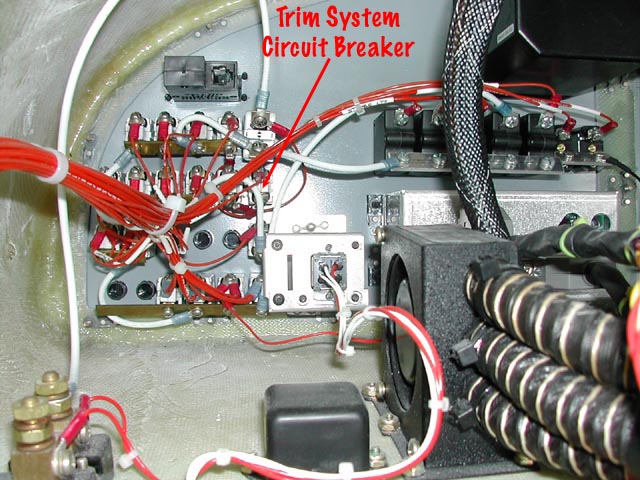

This should be +12v power to the trim system. This C/B doesn't show up on the circuit diagram for the panel. There are no wires which are labeled as TRIM. It would be nice if I could find out where the output wire from the TRIM C/B goes to see if the breaker is properly labeled or if it actually goes to something else.

Date: 09/11/2004

Full size: 640x480
