TrimRelayDeck03Ann

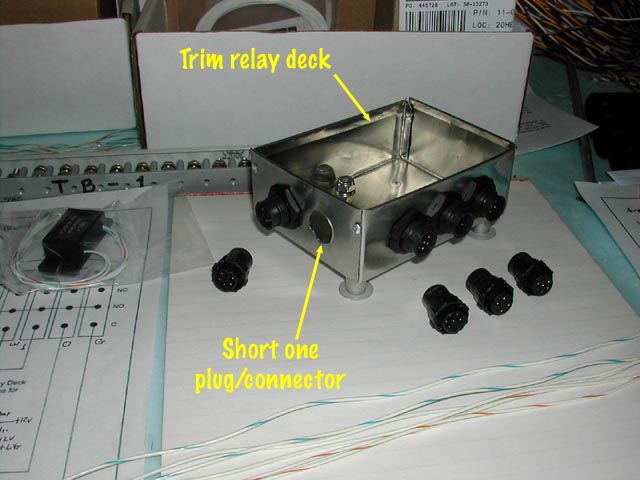

Moved on to the relay deck. Gathered up bits and pieces to see what was needed to complete. I need a male panel 5-pin connector set, some small nuts and colored 20 ga wire. Spent the rest of the day going over the instrument panel wiring. Found another "issue" with that work. Not sure how I will resolve it.

Date: 09/10/2004
