WingSetC06Ann

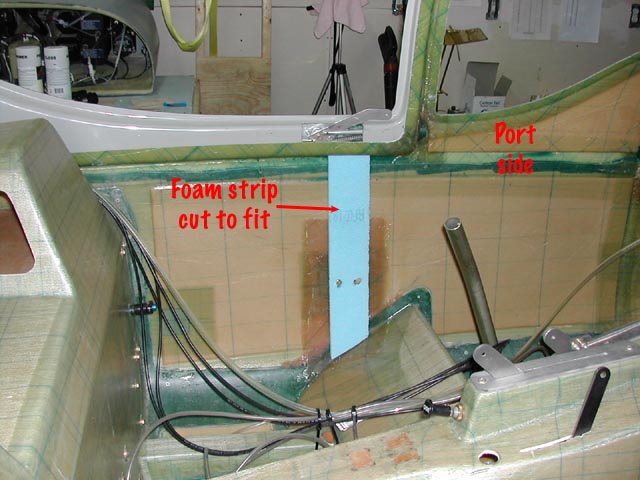

Decided to start the front lift pin internal reinforcements. Calls for a strip of blue foam 3"x16"x1/4" to be bonded to the inside of the cockpit. It runs vertically over the bolt heads for the front lift pin sockets. It will be covered with 3 plies of BID.

Started by cutting a 1/4" thick piece off a block of blue small-cell styrofoam. Cut the foam to strips 3"x20". Trimmed the foam to fit in place.
Port side fitted.

Date: 08/12/2004
