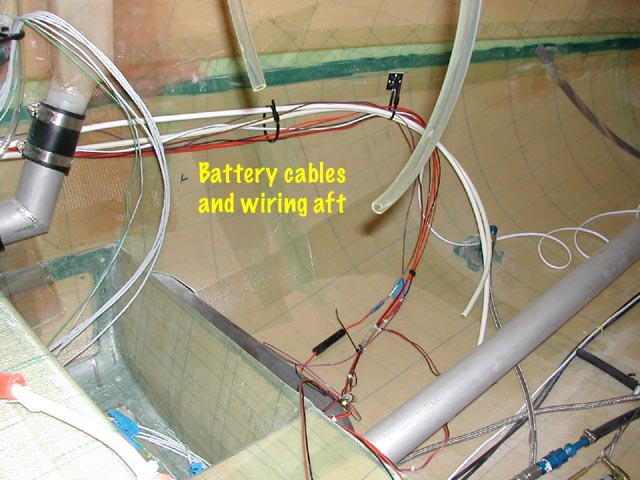

Wiring20Ann

Quickly bored with the sanding again. No doubt at all, my least favorite task.
Back to wiring. Broke the +12v buss into separate battery buss and master buss. Master buss will only have +12v when the master switch is on. The battery buss will always have +12v. Strung some new wire to carry +12v directly from the battery to a new battery buss. Labeled it all.

Date: 09/03/2004
