TrimSwitchesWire02S

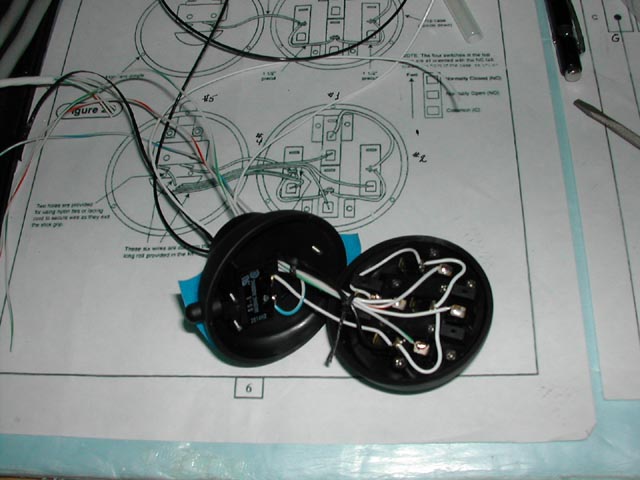

Here I have added the output wires to the switches as well as wiring the PTT switch. The switch units for both control columns were completed to this level. At this point I realized that I didn\'t have the 22 AWG red wire I needed to bring in the +12 volts. So, I ordered some 22 AWG Red wire which should be here later this week so I can complete the switch assemblies next weekend.

Date: 02/13/2005

Full size: 640x480
