061602_Fuel_standpipe_jpg

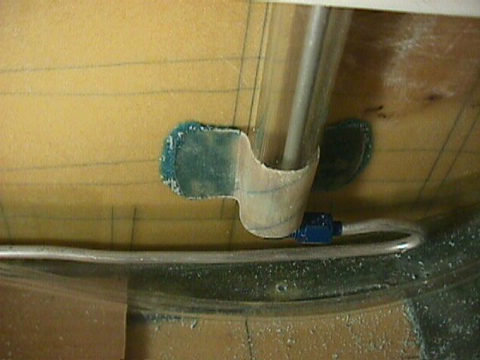

Fuel guage stand pipt Note; fuel line comeing into bottom, you can't see the vent leaving the top. This is behind the passenger seat in the baggage bay.

Date: 12/31/1969
