Lower port insert wiring 2.

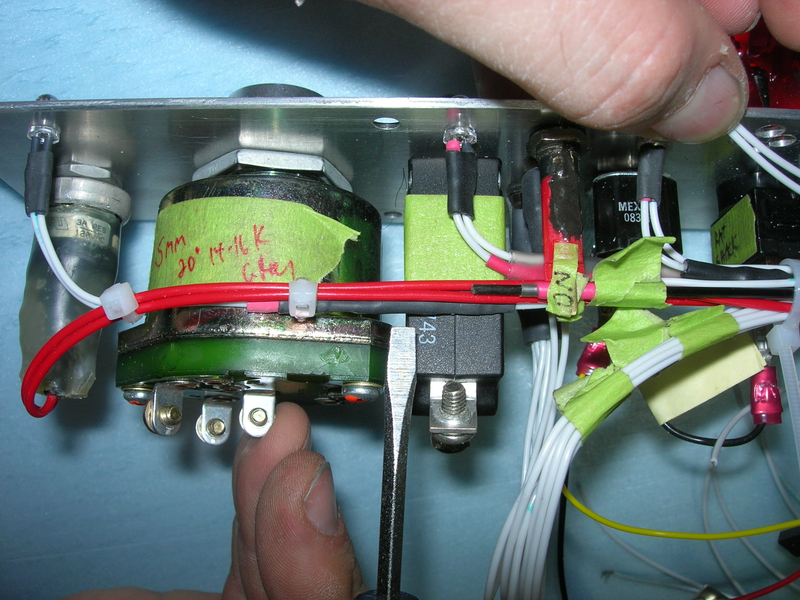

Here I am pointing at the beautiful job Art did of installing a diode in parallel with the starter engaged LED, (on left).
Y10-08-31

Date: 08/31/2010

Size:
Full size: 2592x1944

Lower port insert wiring 2.
