Lower port insert wiring 3.

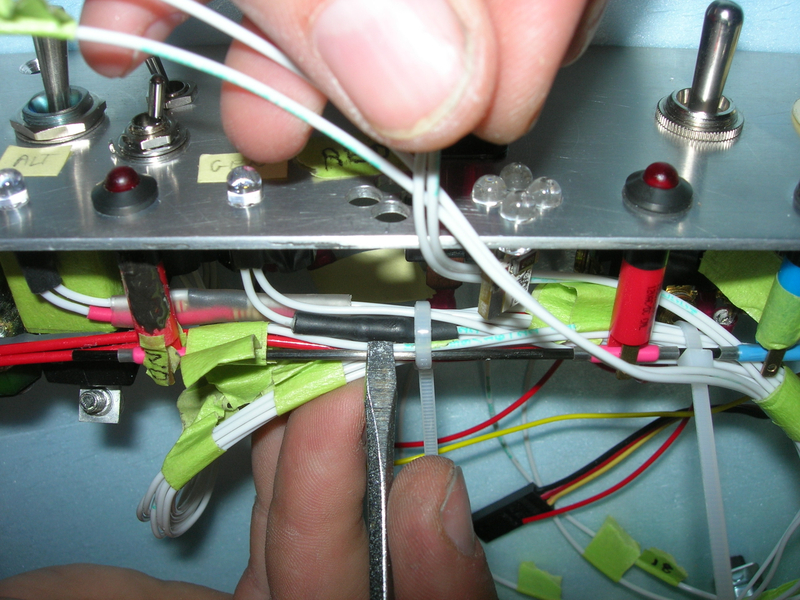

Here I am pointing at the two 220 ohm resistors, (one in series and one in parallel), with our main alternators, (SD20S), regulator, (LR3C), yellow LED indicator so it won't glow too bad during normal operations.
Y10-08-31

Date: 08/31/2010
