Trimmed tang overhang inboard of the inboard edge of hinge leaving thickness of tang plus 10%.

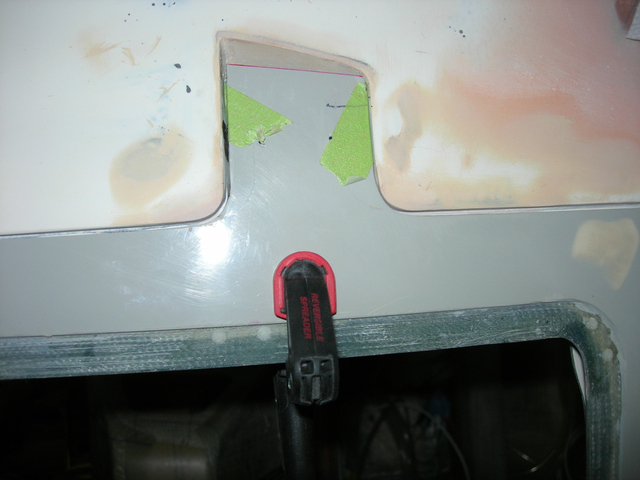

Trimmed tang overhang inboard of the inboard edge of hinge leaving thickness of tang plus 10%. This will yield the least amount of tang overhang, (and intrusion down towards ceiling panel), and the max. amount of gap closing ability when door is closed.
