Outboard strut anchor 4.

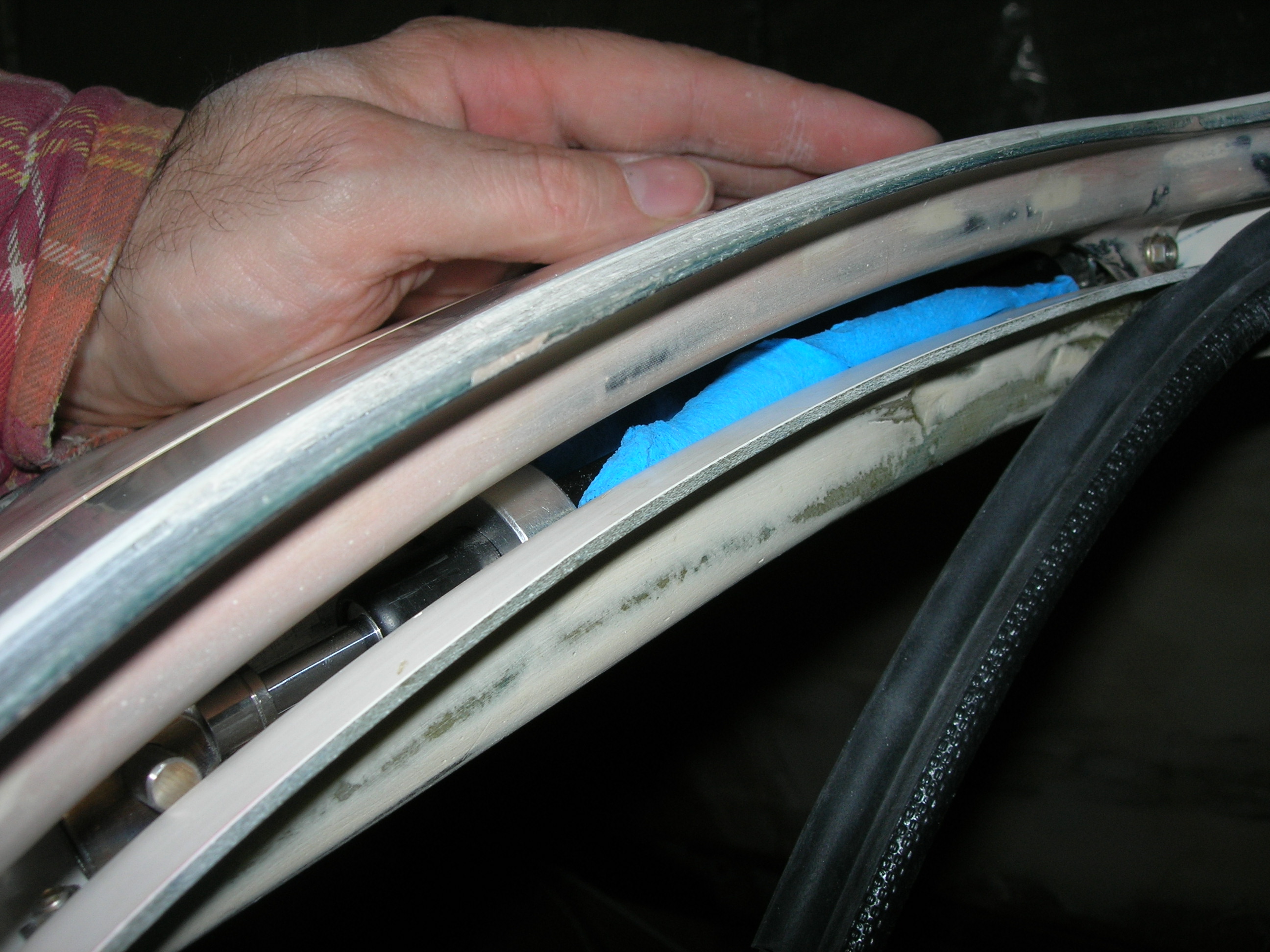

Although the strut anchor is a keeper, my idea for pulling on collar is not. Point loading exceeded the strength of materials. Investigating other options. Passive pin and striker is high on list for anti door warping on upper aft. More later.
