Mid door pin and striker for port door 2.

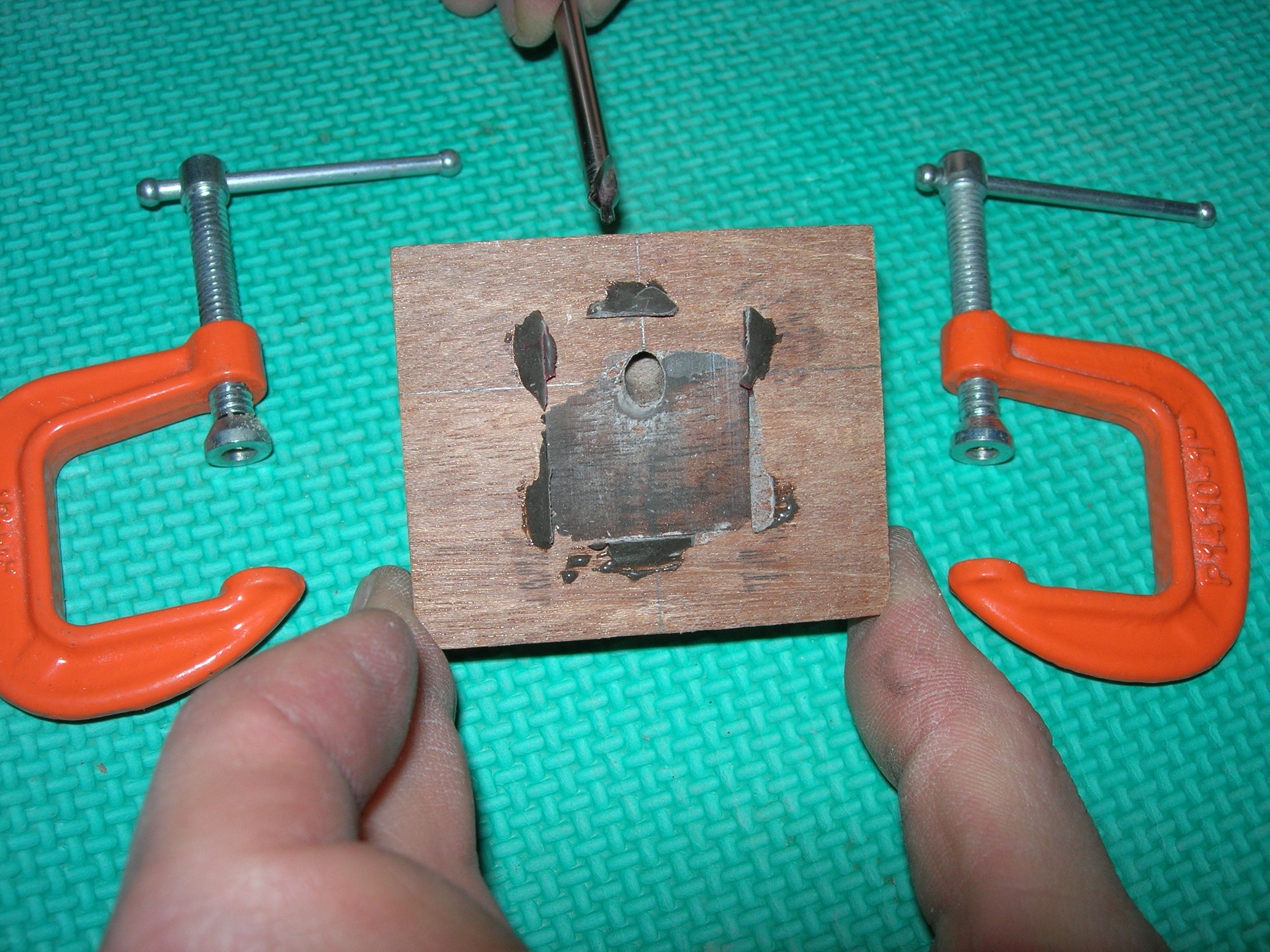

This attempt used a piece of Teak, and instead of using sticky tape just JB KWIKed plate to teak and also used two C-clamps. Used a 4" long .1875" countersink with drill point.
Worked great >>>>> but not before (see next picture).
