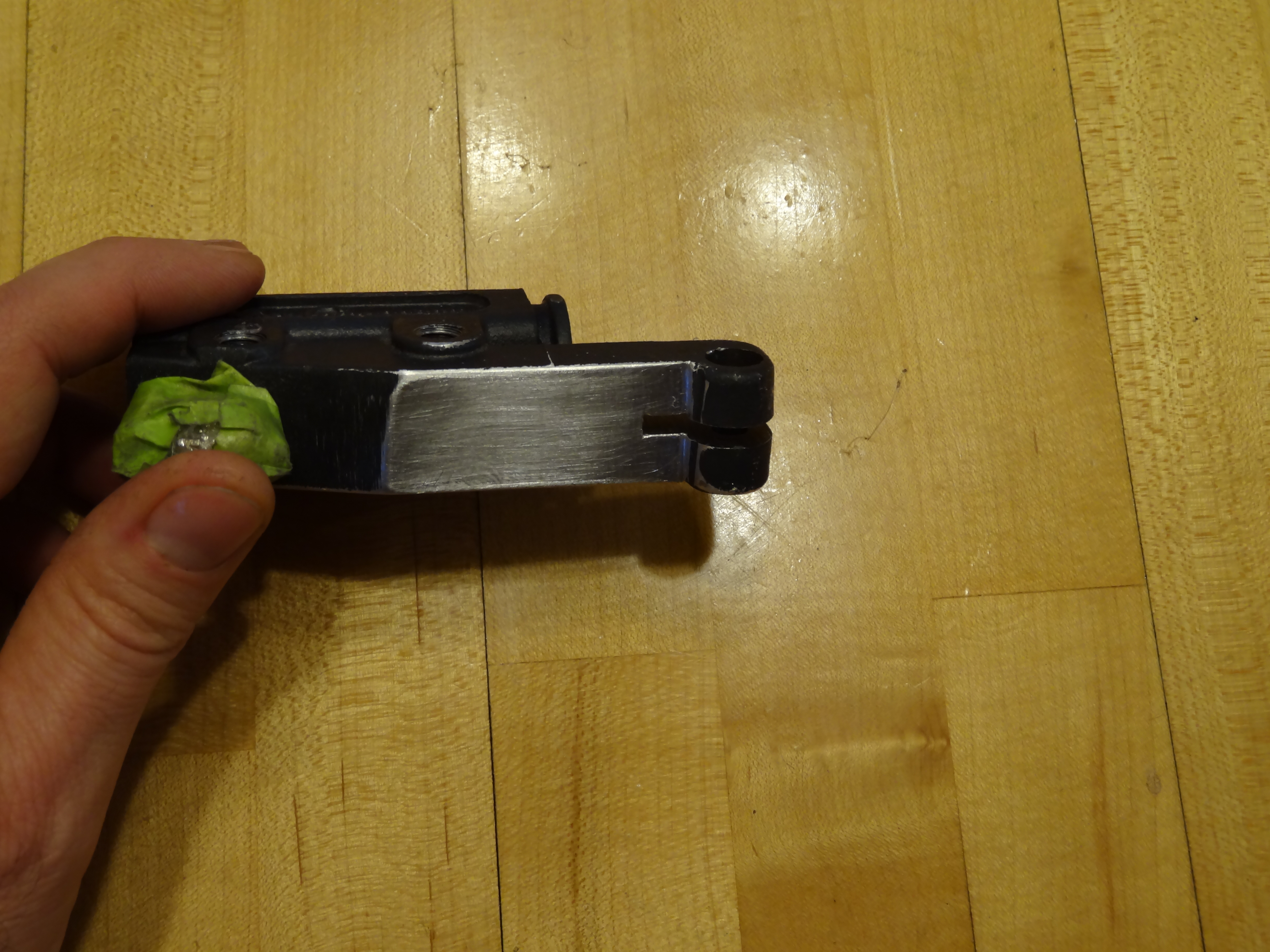

Mill round slot in master cylinder 4 of 12

Milled bottom flat.
I filed with a mini round file the 90 degree corner to prevent stress riser.
Edges rounded too.

Y13-12-23

Date: 12/23/2013
