Threaded rod dimensions

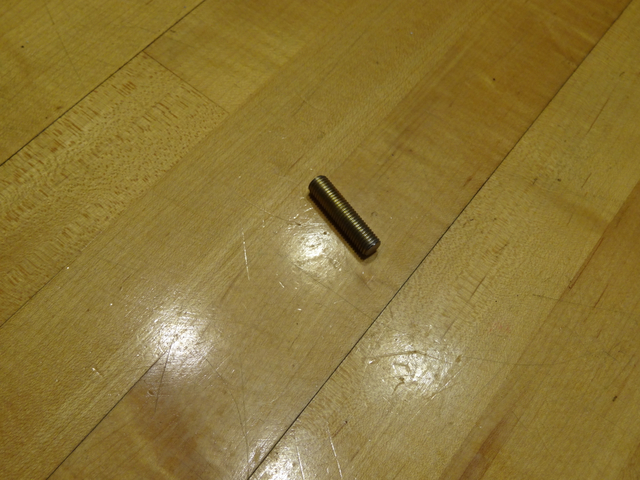

Threaded rod dimensions:

Length: 1.255"
I purchased from McMaster, it was medium strength or 4140 or grade 5, I forget now but it was one of those (pretty much all three are about the same strength).
I chamfered the ends at 45 degrees so the first thread wasn't very thin and weak (like would happen if I chamfered at 60 degrees which is the angle of the threads).
