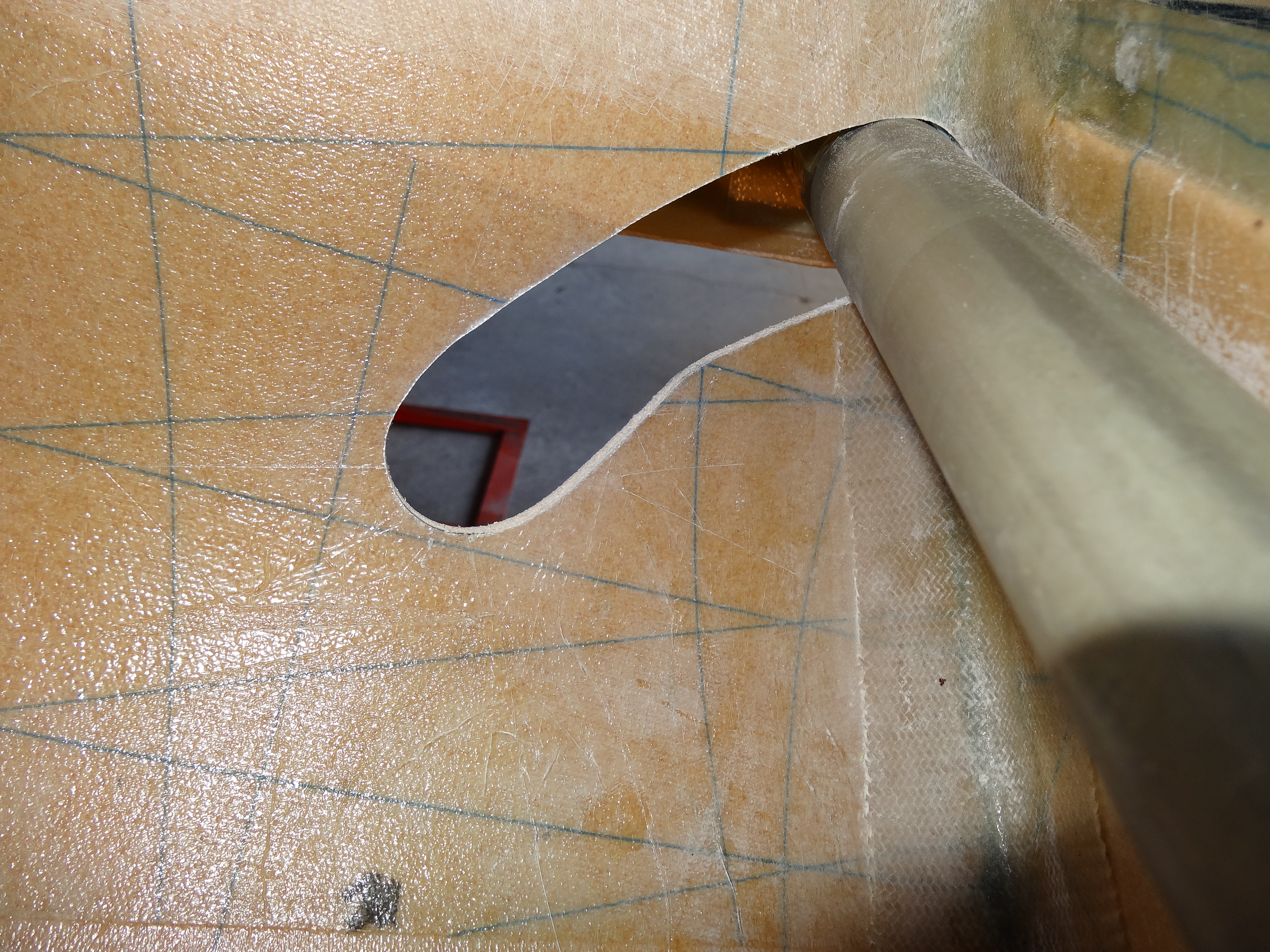

Flap cross tube slot

Due to the dihedral and angle of the flap drive pin, when you project my tool on fuse, it was not perfect, but close enough, without being too much.
Once flaps can be cycled we will chase the flap cross tube with a special sharpened carpenters pencil and get the perfect line on the fuse.
Y13-08-03

Date: 08/03/2013
