FL 18 hollow pivot 4

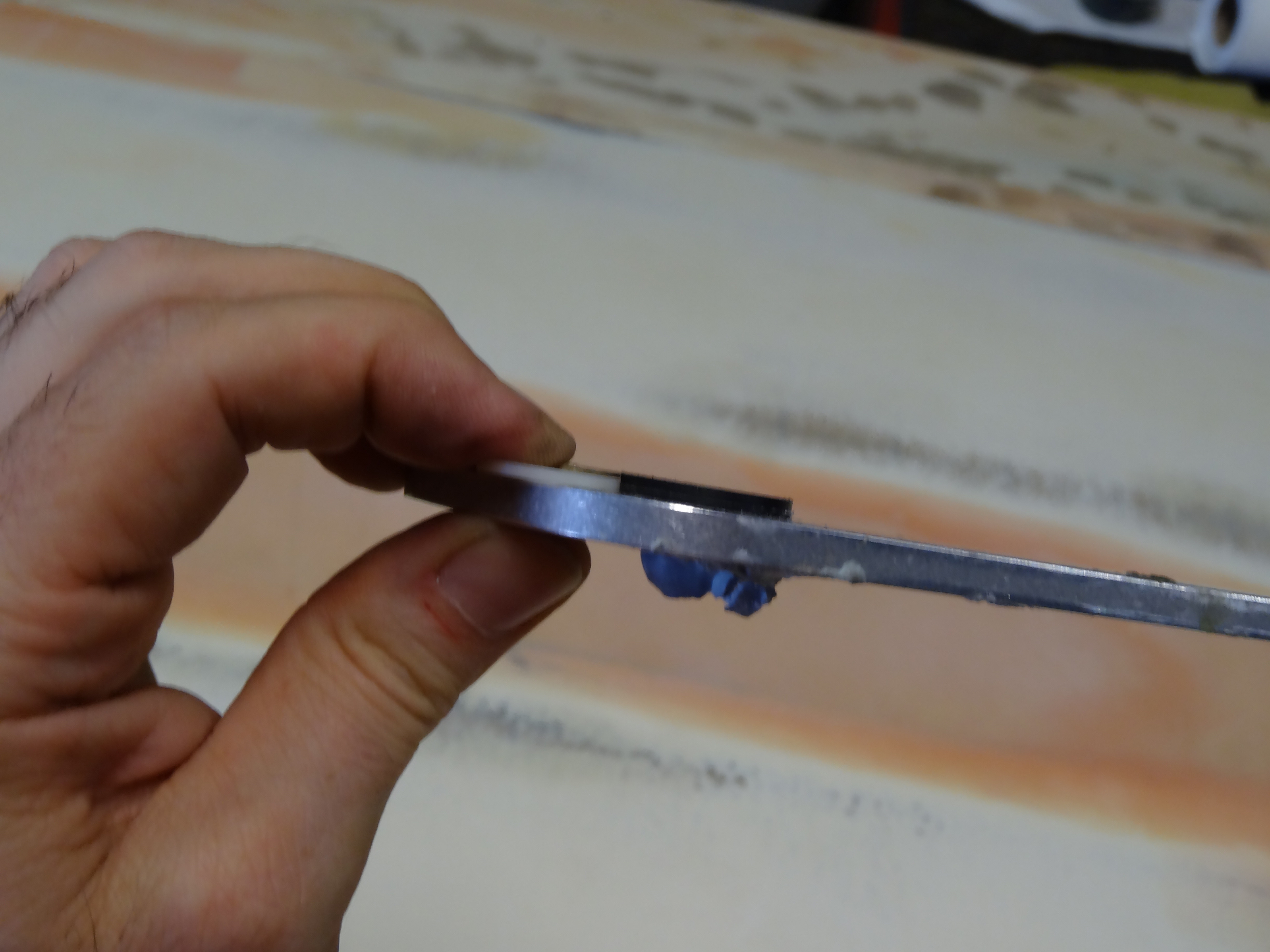

The pivot hardware supplied by Europa is the white washer and small thin steel washer. The two black nylon washers are exactly the same thickness and I double sticky in place.
Y13-08-03

Date: 08/04/2013
