Flap Upstops 5 of 7

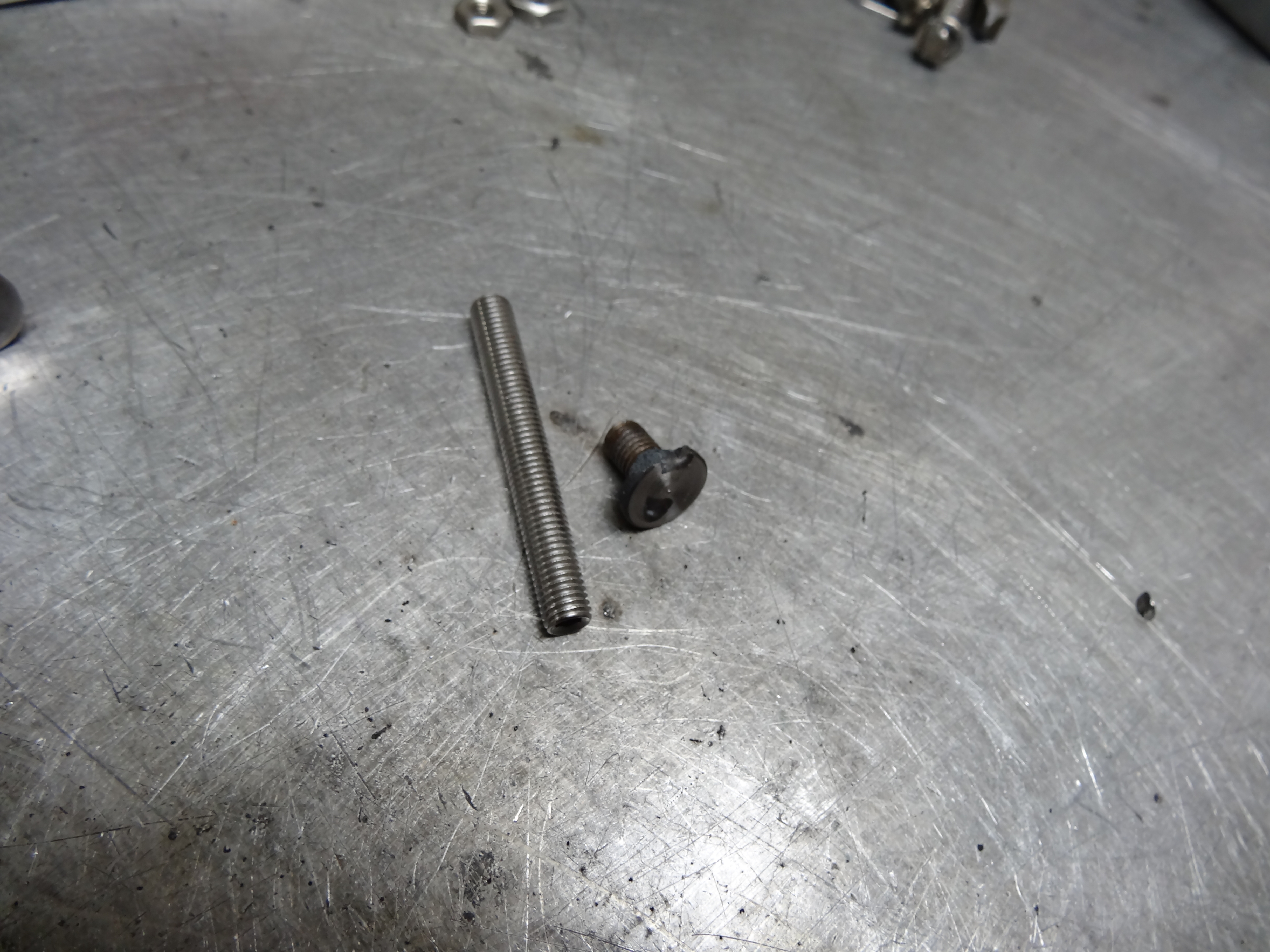

I cut down the Allen screws from 2" length.

This was the first attempt to weld washer, too much heat near end of weld and the washer melted on the edge.
