Flap extension 2

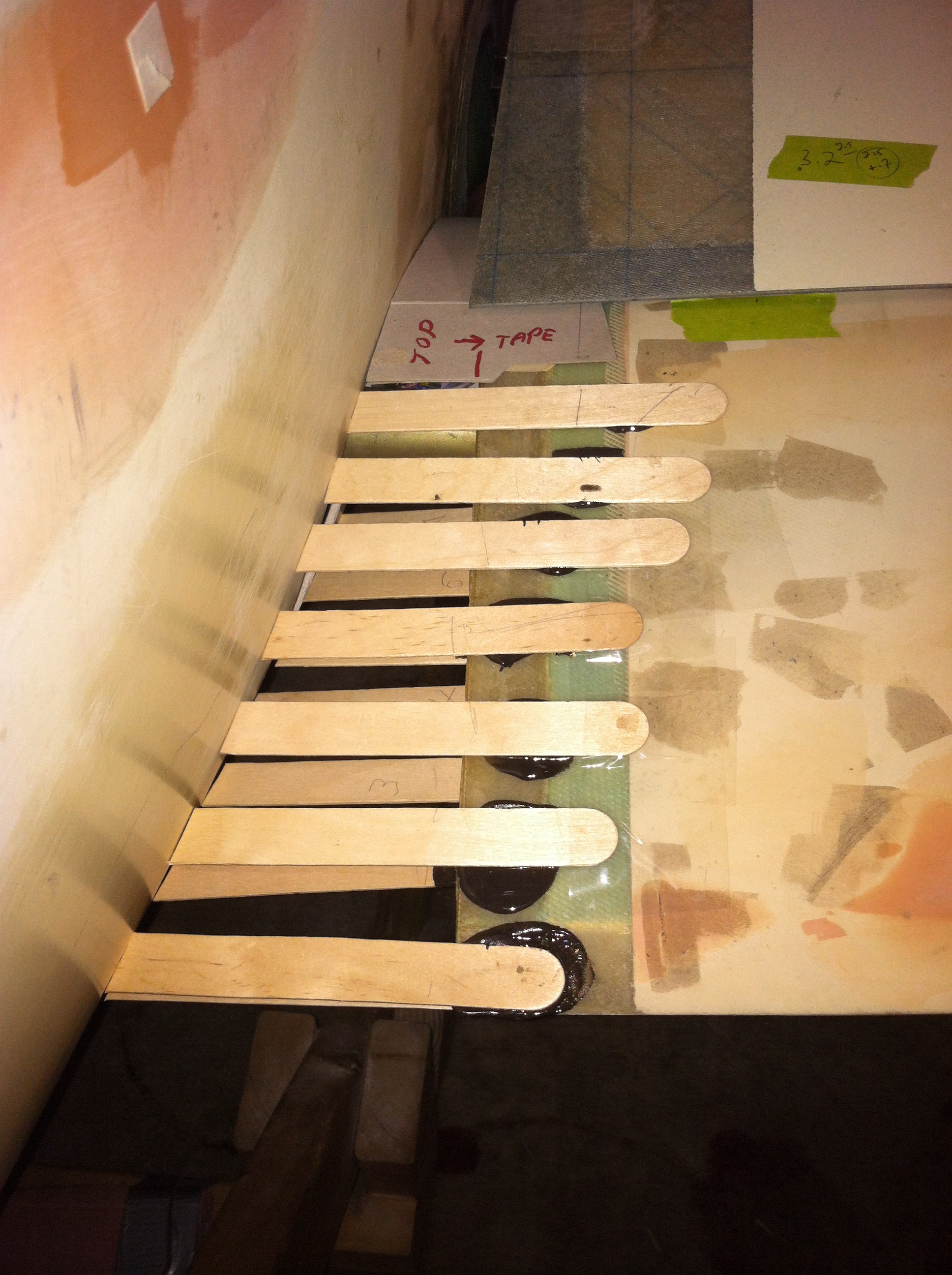

Flap extension 2.
Capt'n Crunch breakfast cereal box, red permanent marker, double sticky tape, mixing stix, 3M 375 packaging tape and JB KWIX Epoxy, the breakfast of champions!
Y13-11-24

Date: 10/30/2013
