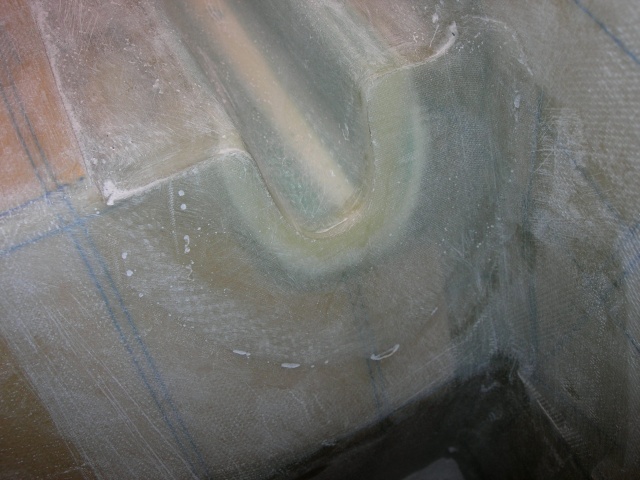

Tie-bar 39.

The very top of the edges are not laying flat against the sides of the tunnel because they are slightly radiused.
They will get a little Flox when laying up 2 BID over the top of the tie-bar.
Y10-11-20

Date: 11/16/2010
