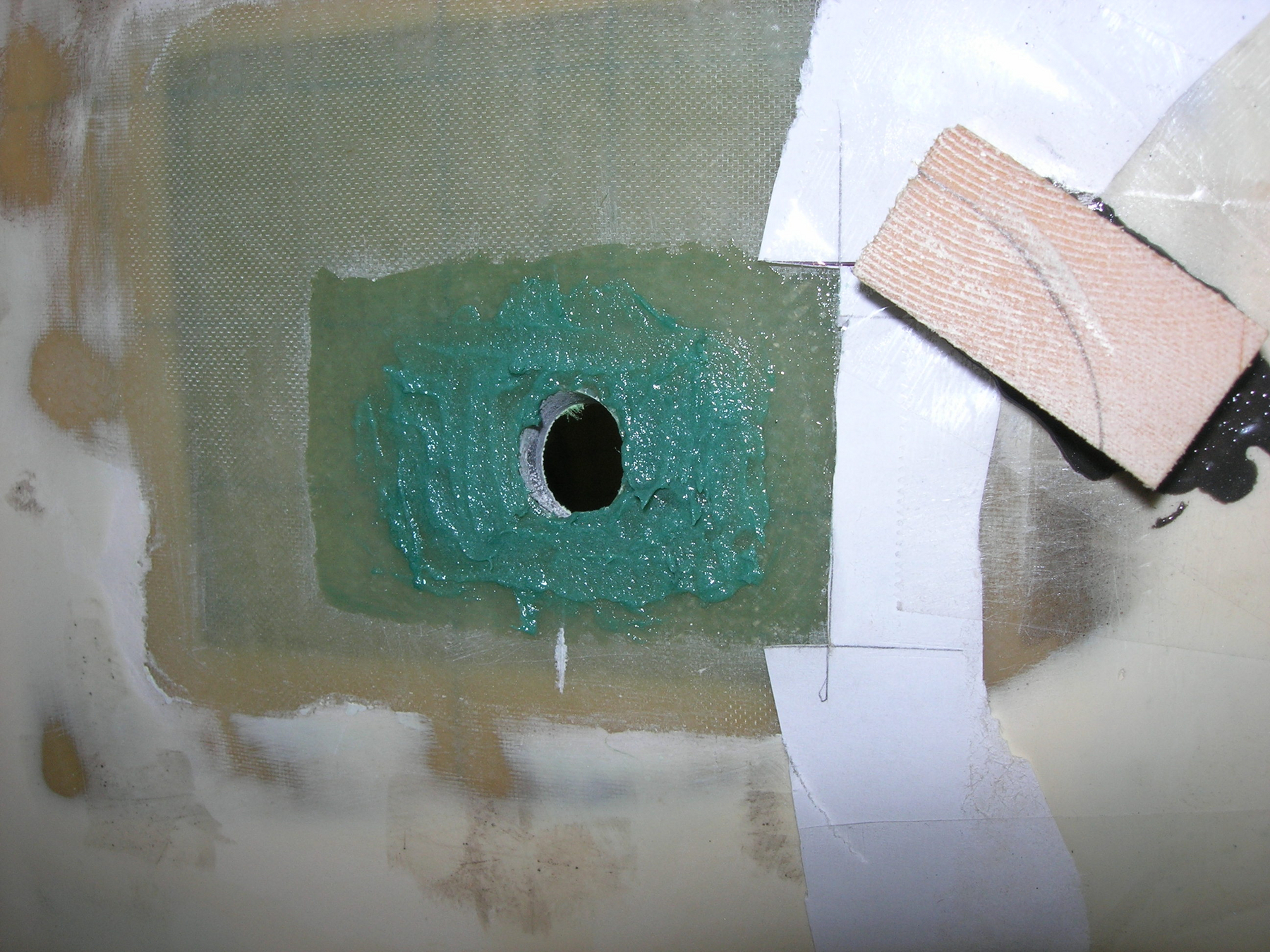

Bonding of Starboard lift pin sockets 9.

Front lift pin socket contact area is scuff sanded, wet out with Redux and filled a little with Redux / flox.
The JB KWIKed wood spacer is to prevent over squeezing the Redux and maintaining proper sweep in wings.
Y10-10-19

Date: 10/19/2010
