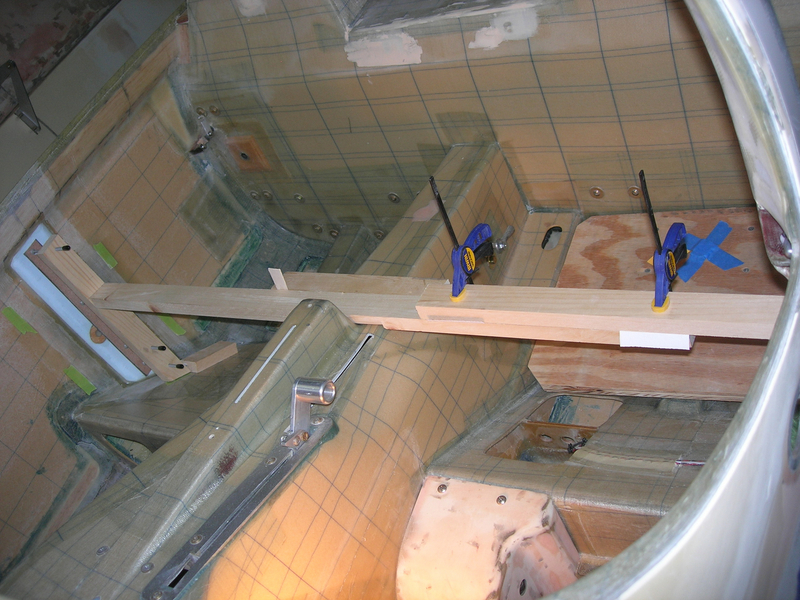

Front Starboard fuse stiffening for lift socket 8.

We needed two stops for the jig, one to keep the side with the screws from sliding backwards and one on the tunnel to keep it from sliding backwards.
We JB KWIKed the stops to 3M 375 packaging tape.
To get proper length we just clamped an extension onto the jig using 2 pieces of of 80 grit sandpaper to promote friction. The tip of the extension has a 1" x 2" load spreader on it.
Once assembled it needed a mixing stick spacer to get pretty close to perfect alignment of the jig.
Y10-10-25

Date: 10/24/2010
