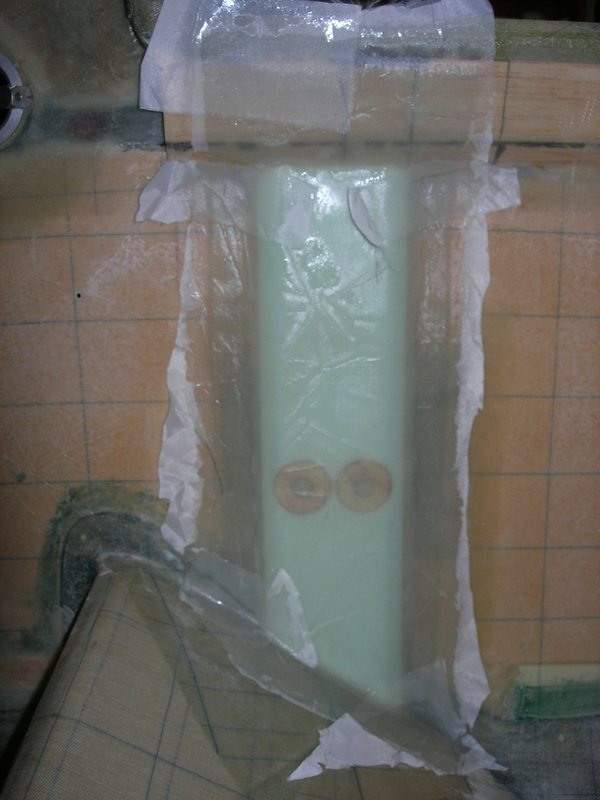

Front Starboard fuse stiffening for lift socket 11.

We waited for plenty sticky cure and removed the stuck to the foam ruler, then 3 BID and peel plied using Aeropoxy / 30 minute hardener.
We used thin Flox to seal the foam before the layup.
Y10-10-25

Date: 10/24/2010
