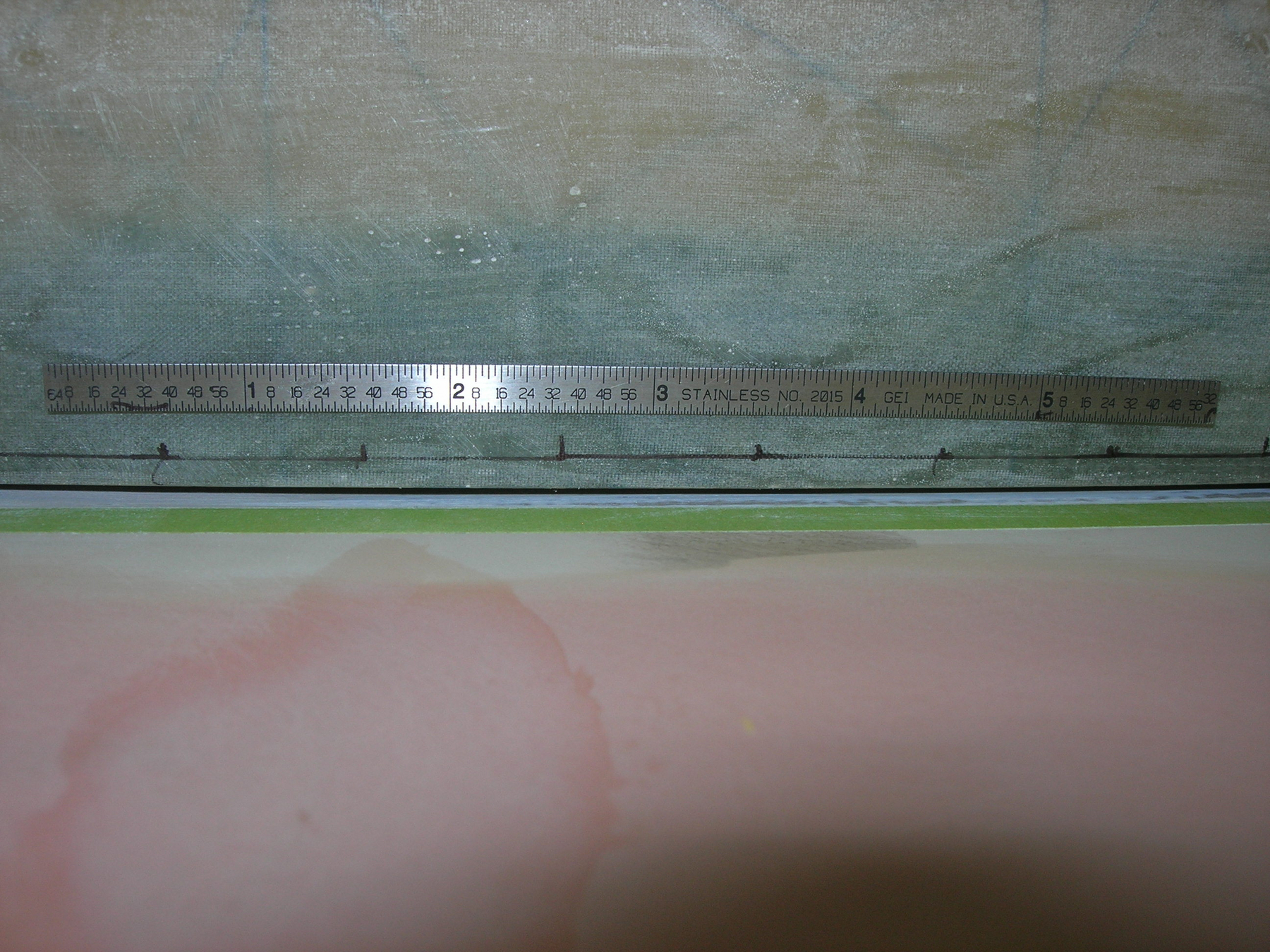

Wing to fuse fit 1.

We already removed any fill on fuse where the wing comes close.
Prior to derigging, we marked the top of the port wing where the flange will have to be removed.
The ruler is ~ .235" wide, which we used as a guide when marking.
Y10-10-31

Date: 10/31/2010

Size:
Full size: 1800x1350
