Wing 5.

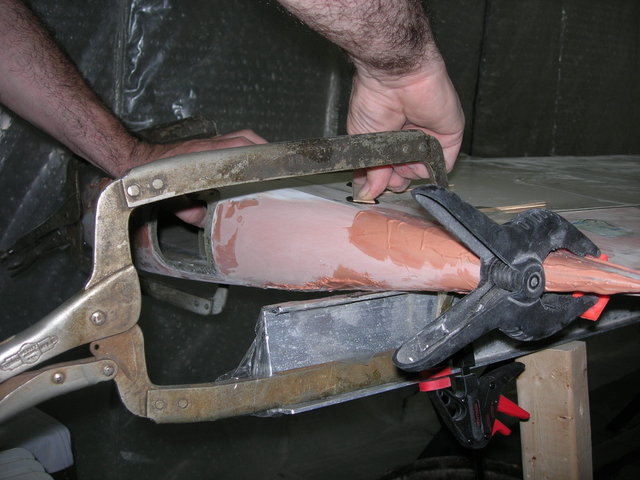

Used deep throat welding clamps to hold lead and trail edge of skin in place at wingtip.
Aluminium U channel is JB KWIKed to bottom of wing to keep it straight. First applied 3M 375 packaging tape to wing and U channel, then 80 grit scuff sanded it prior to JB KWIKing in place.
Y9-09-12
