Rudder horn bushings.

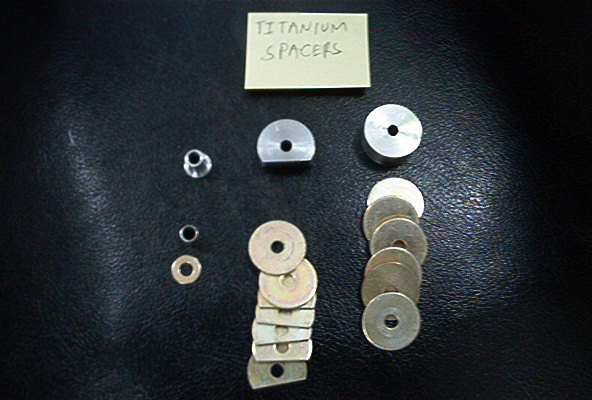

Titanium spacers on base of rudder strengthen horn attachmnet by being pretty stuck to closeout, as does 2 BID >< and extra hinge help tolerate tailwheel loads and pushing on both pedals at once. Displaced hinges push rudder Port and allows for better alignment and less fill.
