Mass balance 1.

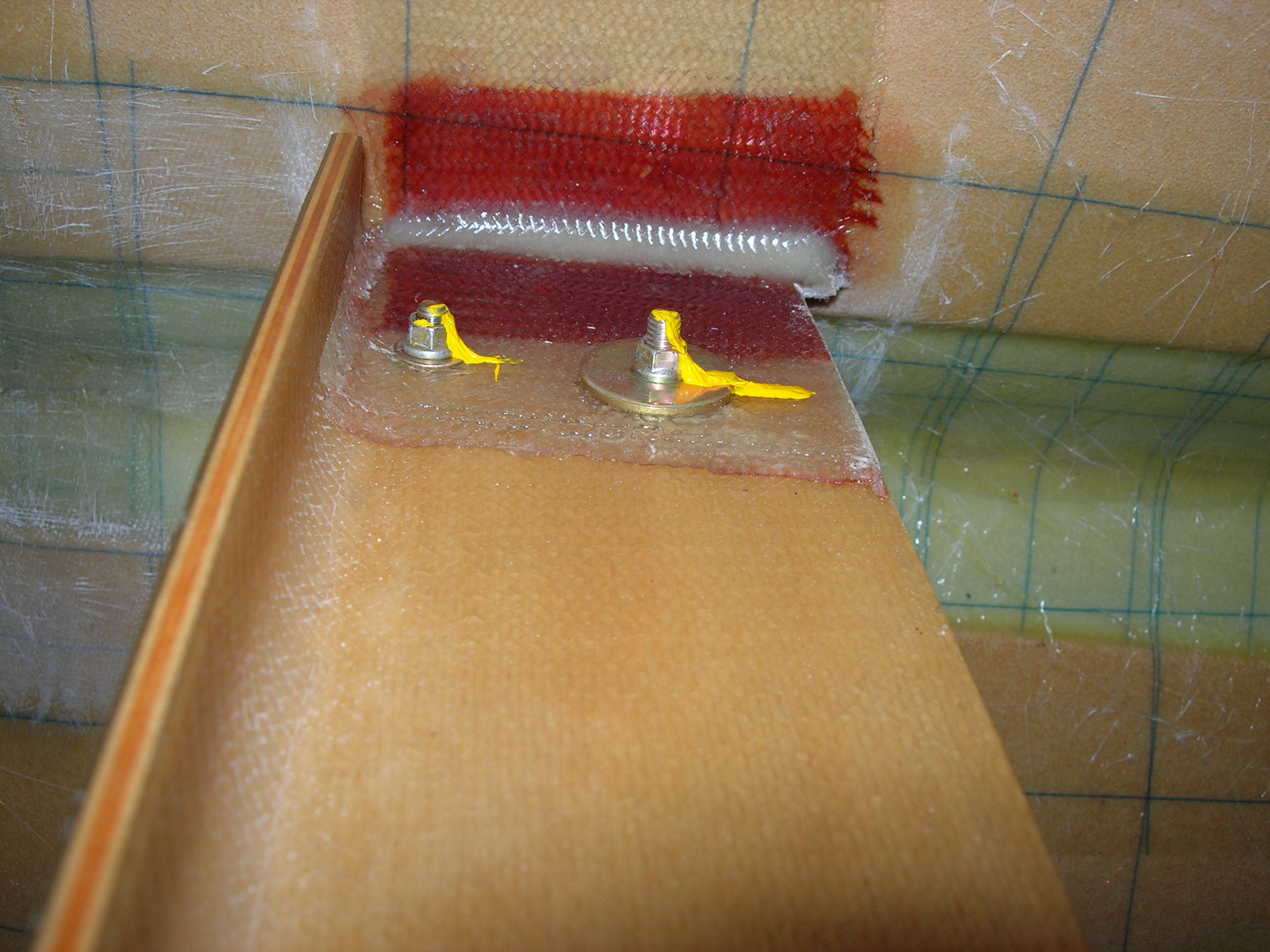

Mass balance flange drilled, hardware installed and marked with inspector lacquer.
Layup came out good. You are looking through 3 plies of BID with 60 minute hardener, (clear with slight yellow tint), to the 30 minute 2 BID containment layup, (very red color).
