Ultimate ventilator installation and associated repair 6.

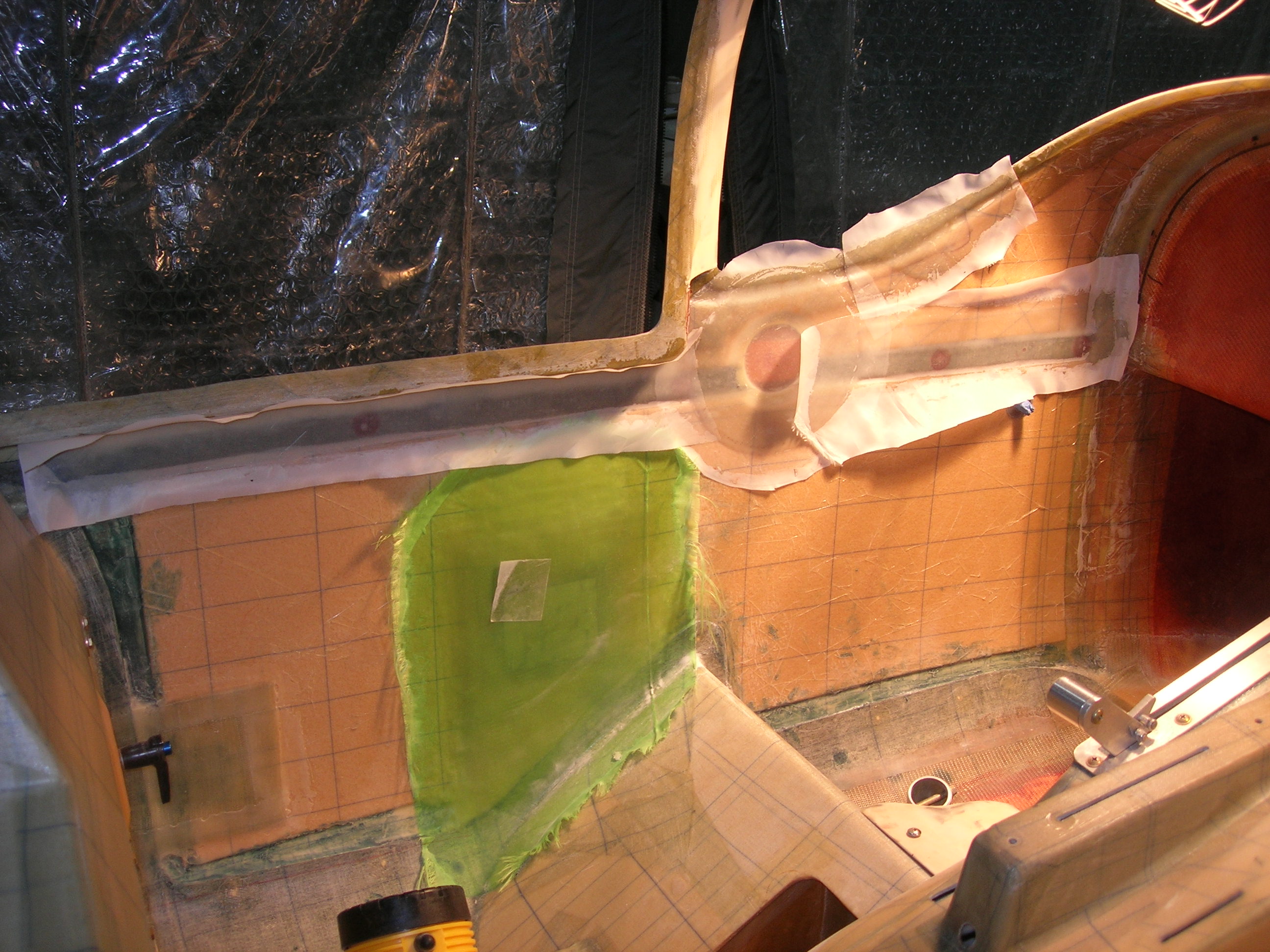

Resolution was to fill voids with a bit of Redux/flox through small holes injected with a syringe, (no rubber seals purchased from ACS).
Worst area near bow got 4 BID from Ultimate ventilator layup, aft over front lift pin on port side got 4 BID, then anything else from firewall to front of headrest got 2 BID. BID was 2" wide.
