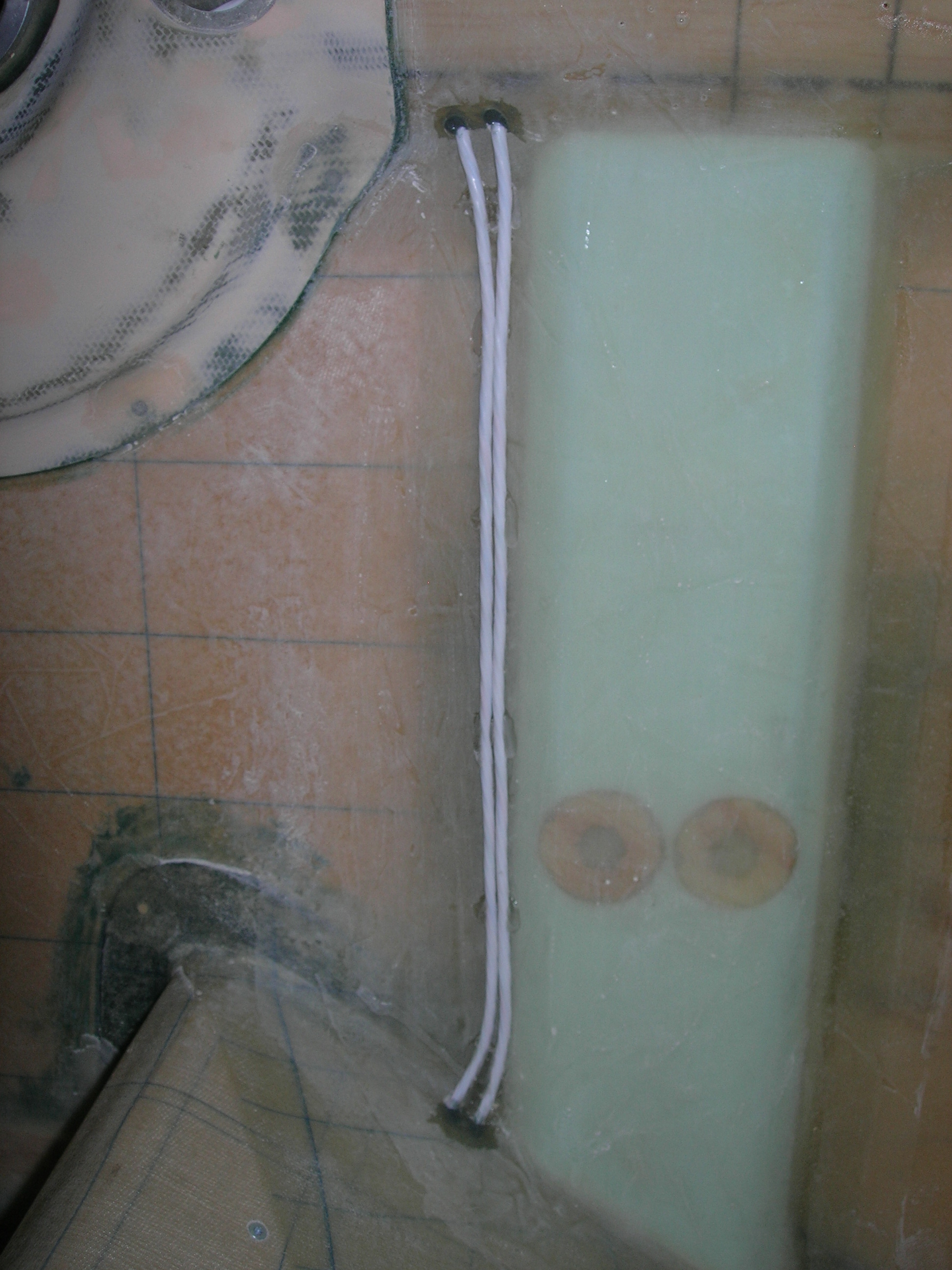

Front fuse conduit run 34.

This is the starboard side run of stick wires going from thigh support to mid fuse conduit.
The wires are held in place with dabs of hot-melt glue and Redux / Flox where they are going through holes.
Y10-12-12

Date: 12/07/2010
