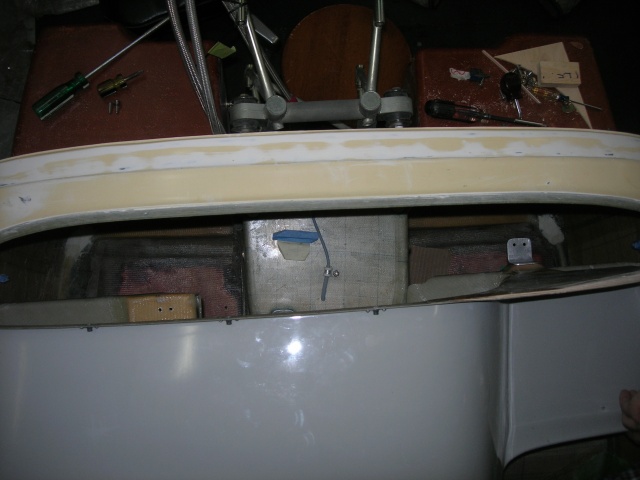

Overall shot of install 1.

You can see 3 of our 5 nutplates on the aft side of firewall here. As depicted in detail in a prior pict, nutplates are held in place with #2 flathead screws and nuts. Not too bad looking.
